一把25萬的椅子:43椅 - 產品與專利

台灣文創與工藝的驕傲:43椅


專利圖式:

從許多新聞可知,台灣工藝品牌Yii(易)跨國開發的「43椅」為工藝與產業的藝術產品,特別是竹藝大師陳高明與德國設計大師Konstantin Grcic的合作,算是時尚與傳統工藝的結合,得到很多國際注意。

先看看「Konstantin Grcic」的設計,多半都是椅子的主題(資料來源:OHIM):

「43椅」資訊(來源:國立臺灣工藝研究發展中心):
工藝師:陳高明
設計師:Konstantin Grcic
材質:孟宗竹
尺寸 (公分):面寬53 x 側深55 x 高度77
特色:每條竹片所彎之曲度與角度皆不同
手工製作:
製作過程運用3D軟體模擬彈性與重量。
突破以往所使用鋼材、鐵材、塑材等材料。
充分運用台灣孟宗竹具強力韌性與彈性之特色。
建議售價:5,000歐元

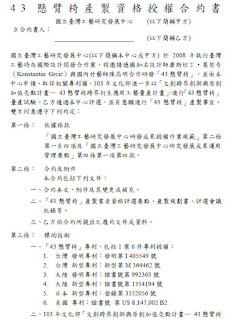

從網路上搜尋得到的「43懸臂椅產製授權合約(甲方:國立臺灣工藝研究發展中心)」,可以知道其專利佈局,以及以智慧財產權的佈局與授權方案:

I405549(中華民國發明)
M364462(中華民國新型)
992363(中華人民共和國新型)
3152056(日本新型)
US8,147,002(美國發明專利)

專利介紹:
I405549(中華民國發明)

(本案專利前案僅遭遇自己的新型專利,經刪除重複專利部分而獲准)
請求項1:
1.一種竹片椅之製造方法,係包括:
取料抽片,將原始竹材依尺寸需求裁切為複數片毛料;
乾燥處理,將該毛料放入一炭化設備以炭化方式進行乾燥處理;
初步校直,將乾燥後的毛料以火烤方式校正曲度;
定規格,將初步校直後的毛料經刨削再校直後確定為實際製造所需要的尺寸規格;
初次烤彎,將部份定規格後的毛料分別用作複數組前片與後片,並將各組前片與後片依照所需要的角度分別進行三道烤彎程序,以形成具椅背段、座位段、椅腳段以及底座段之平滑流線造型;
初次組合,將各組經初次烤彎後的前片與後片組合固定形成各組構成單元;烘烤變形,將各組構成單元之前片與後片於椅背段、座位段以及椅腳段分別進行烘烤變形程序,使其朝左側或右側彎折;
預排成型,將各組經烘烤變形後的構成單元預先相互並列設置以形成竹片椅之初步型態;
二次烤彎,將部份定規格後的毛料烤彎形成複數個固定橫板,該固定橫板係依照預排成型後各組構成單元之前片與後片的椅背段與座位段所夾角度、座位段與椅腳段所夾角度以及椅背段、座位段與椅腳段朝左側或右側彎折的角度烤彎成型;
三次烤彎,將部份定規格後的毛料烤彎形成複數個補強單元,該補強單元係依照預排成型後各組構成單元之後片椅腳段的彎曲程度烤彎成型;以及
二次組合,將該補強單元固定於該構成單元之後片的一側,再將各組構成單元假固定後,與各固定橫板組合以形成一竹片椅。

M364462(中華民國新型)(這部分範圍原本也引述在發明專利範圍中,不過因為重複專利被刪除,申請人保留新型專利)
請求項1:
1.一種座椅,係包括有:
複數組構成單元,係相互並列設置,其分別包括:
一前片,具有一椅背段、一連結於該椅背段之座位段、一連結於該座位段之椅腳段以及一連結於該椅腳段之底座段;以及
一後片,係為對應該前片構造之型態而具有椅背段、座位段、椅腳段以及底座段,其結合於該前片之後側以增加支撐强度;
複數個補强單元,係設置於該構成單元之後片的一側;以及
複數個固定橫板,係分別固定於該後片之椅背段後側、前片之座位段下側、前片之椅腳段後側、後片之椅腳段前側以及前片之底座段下側;
其中,該複數組並列設置的構成單元之後片椅腳段與前片椅腳段下端的間距係由二側往中央漸增以提升承載重量的分力效果。

3152056(日本新型)
(請求項範圍與台案新型一致)

US8,147,002(美國發明專利)
(本案審查過程經限制選擇要求後保留裝置範圍而獲准,並未見到分割案)
就以下請求項1所載竹椅的範圍來看,比其他國家的新型專利範圍更窄,也是申請時初稿的範圍,顯然代理人十分盡責地在美國案規劃不同的專利範圍,不過範圍描述很細節,大約就是直指「一把複雜的椅子」的結構。

Claim 1:
1. A bamboo chair being sturdy, symmetrical and fashionable, having a center, a front, a rear and two sides and comprising;
multiple bamboo slats being fundamental building blocks of the bamboo chair and comprising;
multiple front slats being mounted adjacent to each other and having an upper end and a lower end, and each front slat being curved and having;
a front surface;
a rear surface;
a backrest segment being formed at the upper end of the front slat and has an upper end and a lower end;
a seat segment extending from the lower end of the backrest segment, having a front end and a rear end and being at an angle to the backrest segment;
a front leg segment extending from the front end of the seat segment, protruding downward and having an upper end and a lower end; and
a base segment extending from the front leg segment, bending parallel to a surface on which the bamboo chair sits and having a front end and a rear end;
multiple rear slats being mounted respectively on the rear surfaces of the front slats, and each rear slat being curved and having
an upper end;
a lower end;
a front surface;
a rear surface;
a backrest segment being formed at the upper end of the rear slat, being connected to the rear surface of the front slat on the corresponding backrest segment and having an upper end and a lower end;
a seat segment being shorter than the seat segment of the front slat, extending from the lower end of the backrest segment of the rear slat, connecting to the rear surface of the front slat on the corresponding seat segment of the front slat, having a front end and a rear end and being at an angle to the backrest segment;
a rear leg segment extending from the front end of the seat segment, bending downward, being separated from the front leg segment of the front slat and having an upper end and a lower end;
a base segment extending from the lower end of the rear leg segment, bending to correspond to the rear end of the base segment of the corresponding front slat and connecting to the base segment of the corresponding front slat; and
multiple transverse support slats being mounted on and holding the front slats and rear slats securely in position adjacent to the corresponding front slats and rear slats;
a backrest being formed by the adjacent backrest segments respectively of the front and rear slats held in place by a transverse support slat at upper ends of the front and rear slats;
a seat being formed by the adjacent seat segments held in place by a transverse support slat mounted under the seat;
two legs comprising;
a front leg being formed by the adjacent front leg segments;
a rear leg being formed by the adjacent rear leg segments; and
a base being formed by the adjacent base segments held in place by at least two transverse support slats and sitting stably on any flat surface.

後語(評論是尊重的方式之一,這裡只是我的意見):
我想,這類以工藝為主的技術要取得專利實在不容易,就工藝的專利保護來看,我覺得設計專利比發明專利重要,從佈局來看,可能有幾個想法(抱歉,這是我的後見之明)
  • 發明專利或可搭配設計專利( 部分設計為佳),至少視覺上的印象對「43椅」是重要的,因為外觀容易模仿,製程或是其中結構設計卻相對不容易模仿。這個發明專利圖式都圍繞在「43椅」,不過就專利範圍來看,或許無法防堵有人心對於"外觀"的仿冒或者
  • 製程可以「營業秘密」保護;或說
  • 這些製程如果公開給產業使用,反而可以促進成長,不一定要取得製程專利,設計(或是部分設計)才是精神所在;或者
  • 「透過製程授權」,還是可以保護工藝大師的「精神」,一旦有人想要這個技術,確實可以透過專利授權達成;
  • 另外,我這個門外漢認為,以方法專利的標準來看,這些動作(手工)很難取得國外專利,因為都可說每個步驟都是「人為心智活動」,這不同於「半導體或是自動組裝」的製程,這就是工藝品或美術品"不容易"取得方法專利的主要理由之一。比如請求項1的步驟有:「取料抽片」、「乾燥處理」、「初步校直」、「定規格」、「三道烤彎程序」、「初次組合」、「預排成型」、「二次烤彎」、「三次烤彎」以及「二次組合」,嚴格來看,「手工製作」就是取得發明專利障礙。
  • 當然,這類工藝設計的保護還是有「著作權」與「營業秘密」的門檻,所謂「專利權」就是"看得見"的權利,仍有其佈局的必要性。
